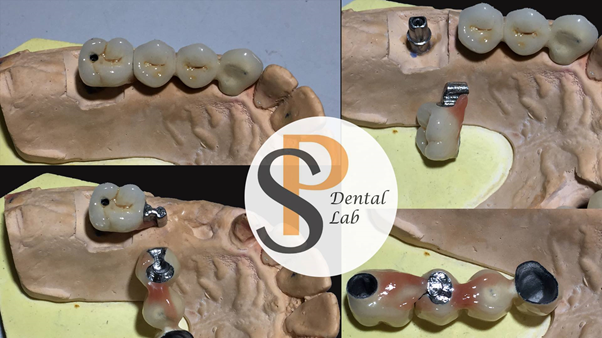

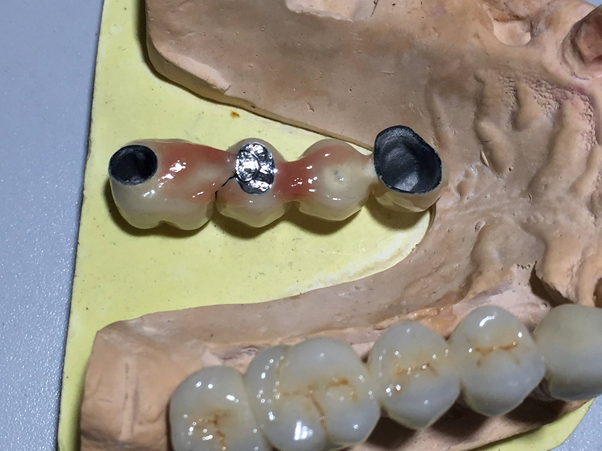

DMLS non-rigid connector

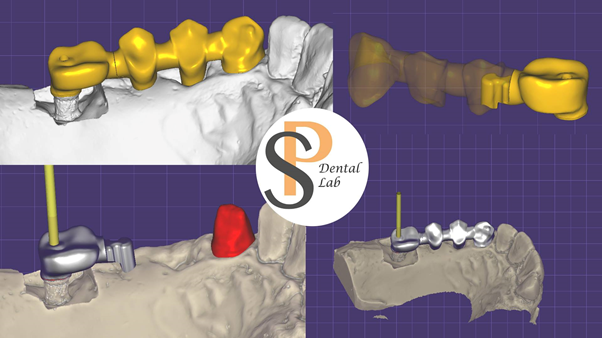

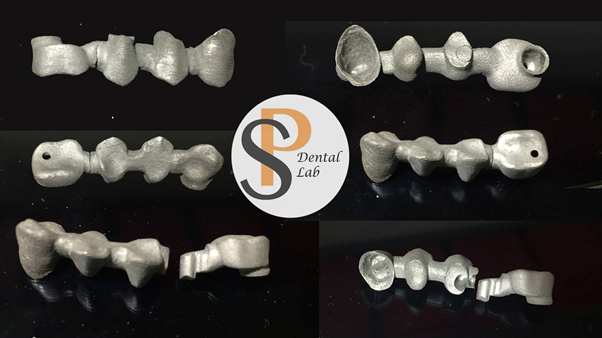

A non-rigid connector joins two parts of a fixed bridge with a key and keyway instead of a rigid joint, which allows slight movement between the segments. We design the connector digitally and produce the Co/Cr framework by direct metal laser sintering (DMLS).
When it is used
- Long-span bridges with a pier (intermediate) abutment
- Abutments that are not parallel, where one path of insertion is not possible
- Long bridges that are better made in shorter segments
Benefits
- Reduces the stress passed on to the abutment teeth
- Key and keyway are accurate because they come from the CAD design
- The segments can be seated one after the other
